Product Overview
CTM-3005-H6G0M

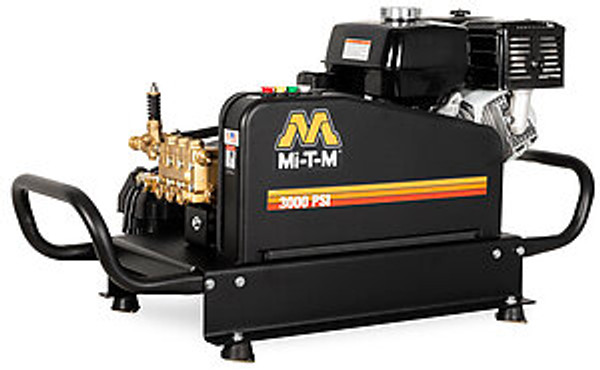

This cold-water truck-mount series is designed for mobile cleaning. Mount it to a truck or trailer with a water tank and clean anywhere, anytime.
Installation
Mount on a truck or tailer · Requires 200-gallon or larger water tank (Not included)
Pump
Equipped with Mi-T-M Pressure Relief Start · External bypass system protects from heat build-up · Forged brass manifold · Thermal relief valve · Water filter with clear sleeve for screen inspection
Engine
Recoil start engine (OPTION for Electric Start Available)
Frame
Powder coated steel frame · 1¼-inch tube handles · Two-piece, enclosed belt guard · Mounting plate with rubber isolators
Unit Includes
Quick connect nozzles – 0°, 15°, 25° and 40°
Note: All gasoline models sold in California are required to have a CARB compliant engine. Consult factory.
49 state engine. Not for sale in California.
CTM-3005-H6G0M 3000 5.0 389cc Honda GX390 OHV+ General Mi-T-M, factory preset 1.6 gallons
CTM-3508-H6G0M 3500 8.0 688cc Honda GX690 OHV+ with electric
start (included) - battery not included
General Mi-T-M
